Create your first prompt

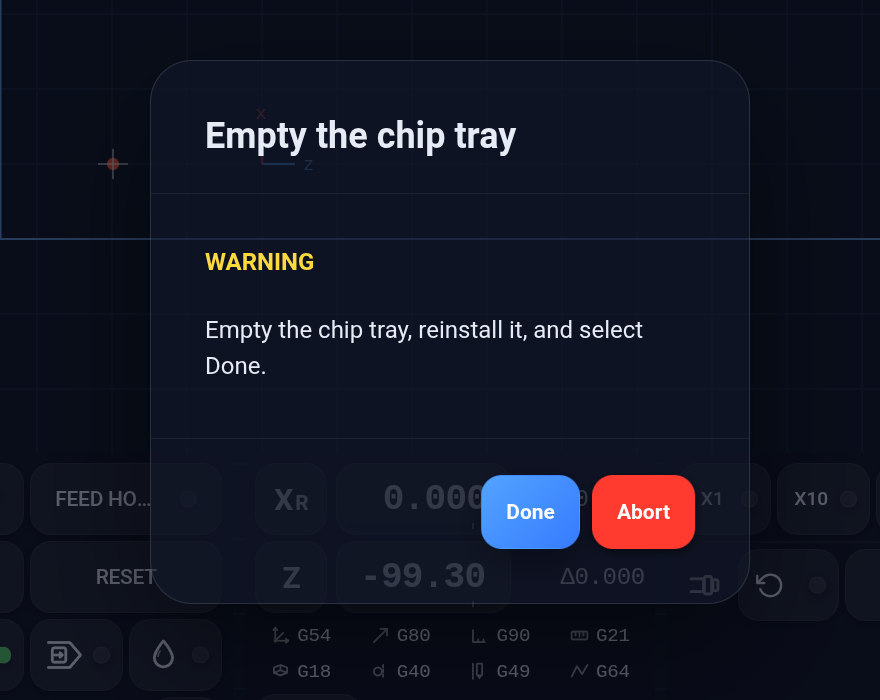

This example asks the operator to empty the chip tray and reports when they select Done.

Create the catalog

Create prompts.yaml beside the machine’s HAL configuration. The file follows the prompt catalog schema:

version: 1

hal:
  component: ctrl_prompt

prompts:
  chip-tray:
    hal:
      pins:
        show:
          direction: in
          type: bit
          trigger: rising

        completed:
          direction: out
          type: bit
          on_action:
            done: true

    title: Empty the chip tray
    message: Empty the chip tray, reinstall it, and select Done.
    severity: warning

    actions:
      - id: done
        label: Done
        intent: primary

    allow_abort: true

The catalog has three top-level entries:

Entry	Purpose
version	Selects version 1 of the catalog format.
hal.component	Sets the namespace for the generated HAL component.
prompts.chip-tray	Defines the prompt, its content, and its HAL pin contract.

Only a name under prompts becomes an available prompt instance. This one is named chip-tray.

Start the broker

Load the catalog from the machine HAL configuration:

loadusr -W ctrl_prompt --schema=prompts.yaml

The broker validates the catalog and creates all configured pins before the HAL component becomes ready. If prompts.yaml is not beside the HAL file that loads it, pass the correct path for the machine configuration.

Restart LinuxCNC after changing the catalog. The broker is intentionally started by the machine HAL file; it is not systemd-activated. Its ctrl.prompt.v1 gRPC service listens on 127.0.0.1:50053 by default.

Connect the machine logic

The example creates these pins:

Pin	Direction	Purpose
ctrl_prompt.chip-tray.show	Input	Submits the prompt on a rising edge.
ctrl_prompt.chip-tray.completed	Output	Becomes true after the operator selects done.

Connect the machine’s request logic directly to show, and use completed where the machine sequence needs the acknowledgement. The integrator chooses the machine-owned signal names.

The complete pin name is assembled as component.instance.pin:

• ctrl_prompt comes from hal.component;
• chip-tray comes from the configured prompt name; and
• show or completed comes from the pin declaration.

Exercise one request

Follow this sequence from machine logic or a HAL testing tool:

1. Confirm show is false and completed is false.
2. Set show true. The rising edge submits the request.
3. Keep show true while the prompt is pending or active.
4. Select Done. completed becomes true.
5. Read the result, then set show false. completed resets to false and the request is released.

If the operator aborts, completed remains false. The machine logic must still lower show before it can submit a new request.

If show falls before the operator answers, the broker cancels and releases the request. Holding show high after that does not resubmit it; a new request requires another falling-to-rising transition.
