Use built-in prompts

Ctrl includes prompts for common manual machine operations. Configure one of these before writing a custom prompt when its operator interaction and HAL contract match the machine. The shipped built-in prompt definitions contain their full content and HAL contracts.

Save the selected catalog as prompts.yaml beside the machine’s HAL configuration, then load it from that configuration:

loadusr -W ctrl_prompt --schema=prompts.yaml

The broker creates the listed pins before becoming ready. Restart LinuxCNC after changing the catalog.

Configure manual tool change

The builtin.manual-tc prompt provides the standard manual tool-change handshake:

version: 1

hal:
  component: ctrl_prompt

prompts:
  manual-tc:
    template: builtin.manual-tc

It creates:

Pin	Direction	Purpose
ctrl_prompt.manual-tc.change	Input	Rising-edge tool-change request.
ctrl_prompt.manual-tc.number	Input	Requested s32 tool number captured with the request.
ctrl_prompt.manual-tc.changed	Output	Becomes true after Continue.

Set number, raise change, wait for changed, and lower change to release the request and reset changed.

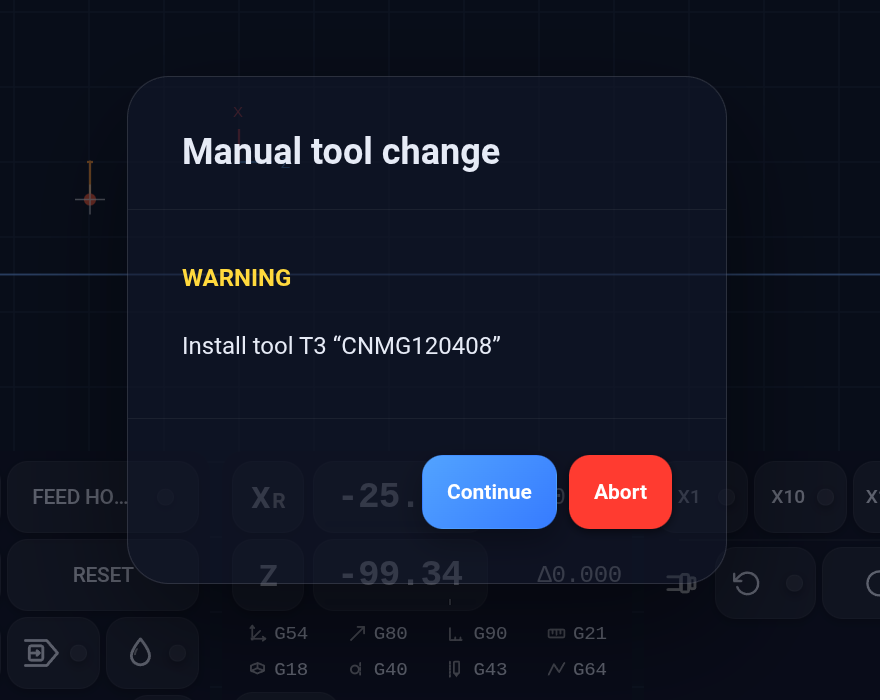

The supplied wording handles tool 0 as removal, includes tool-table comments when present, and shows a non-zero diameter for non-lathe configurations. It includes English and Polish translations.

Configure a manual gearbox

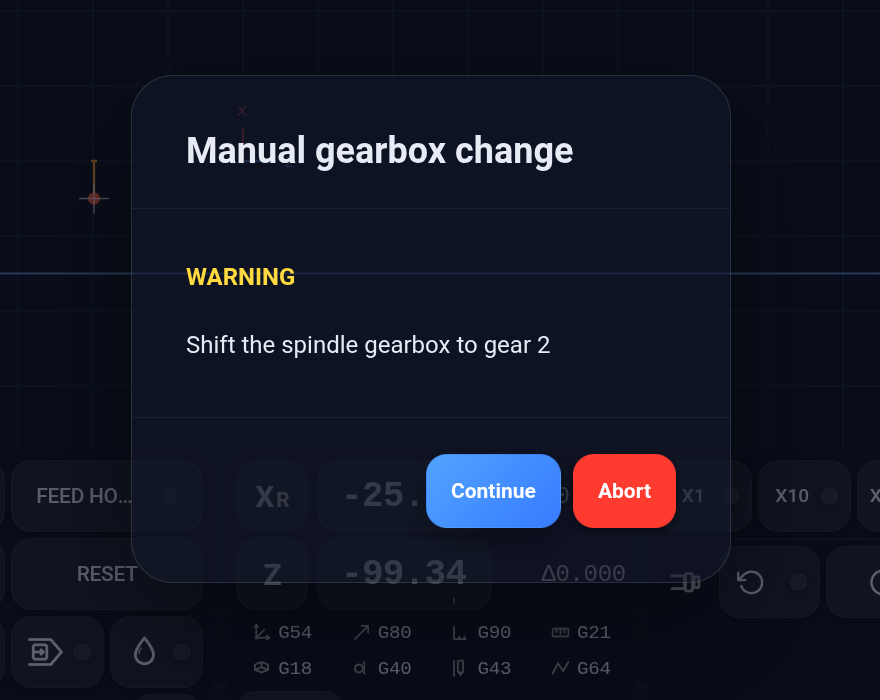

The builtin.manual-gear-change prompt provides the same lifecycle for a manually selected spindle gearbox:

version: 1

hal:
  component: ctrl_prompt

prompts:
  spindle-gearbox:
    template: builtin.manual-gear-change

It creates:

Pin	Direction	Purpose
ctrl_prompt.spindle-gearbox.change	Input	Rising-edge gear-change request.
ctrl_prompt.spindle-gearbox.gear	Input	Requested s32 gear captured with the request.
ctrl_prompt.spindle-gearbox.changed	Output	Becomes true after Continue.

Set gear, raise change, wait for changed, and then lower change.

To change the wording or extend a built-in contract, continue with Reuse and specialize templates.
